** Please note: YOU NEED ADDITIONAL HARDWARE TO USE THIS APP

This app enables your device to display live ADSB data (1090ES) from surrounding airborne aircraft. All you need is a supported USB dongle and an OTG cable, both available from various sources on the internet for less than $20.-.

Visit http://hiz.ch/index.php/home/adsb-receiver for more details!

The received data can also be used to display live air traffic in Avare:

http://hiz.ch/fwd/ps.Avare.html

This test version is fully functional but comes with a package limit. Please consider buying the "Pro" version to support the development of this app. Thanks!!

Pro version:

http://hiz.ch/fwd/ps.AvareADSBpro.html

USAGE

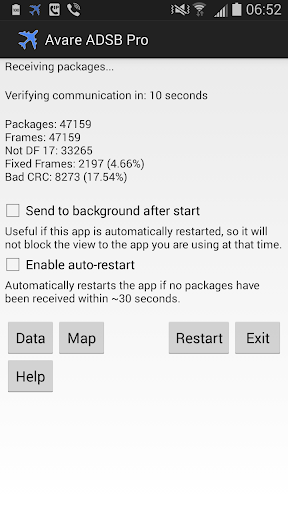

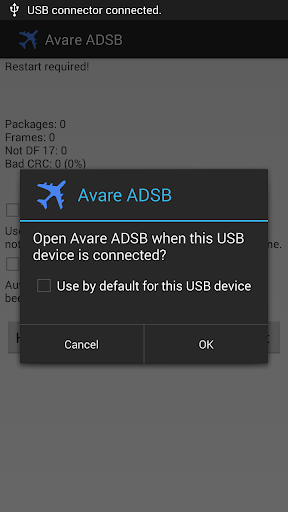

Attach a supported USB dongle to your Android device using an OnTheGo (OTG) cable. (Make sure your device supports OTG!) This app will automatically start once a device has been detected. Answer `yes` if you are asked to auto-open the app, it will immediately try to receive ADSB data. You should see packages flowing in quickly, depending on your location.

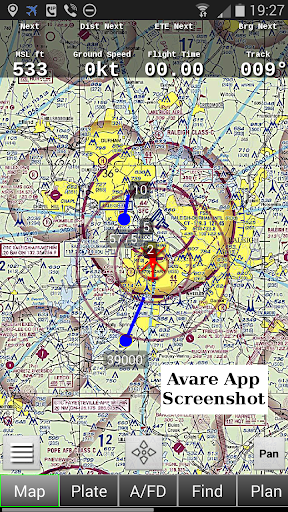

If you`re using Avare:

Simply start the Avare External I/O Plugin app, select `WIFI` and activate listening on port 43211. You will start to see other airplane on the Avare sectional map, once enough data has been gathered. Please make sure to enable the related option `Show ADSB Traffic` in Avare.

Avare External I/O Plugin:

http://hiz.ch/fwd/ps.AvareHelper.html

HARDWARE

List of supported tuners:

• Rafael Micro R820T (recommended!)

• Rafael Micro R820T2

• Elonics E4000

• Fitipower FC0013 (low performance)

FC0013 is supported, but often has limits close to 1090 MHz, which can reduce the performance to receive ADSB data.

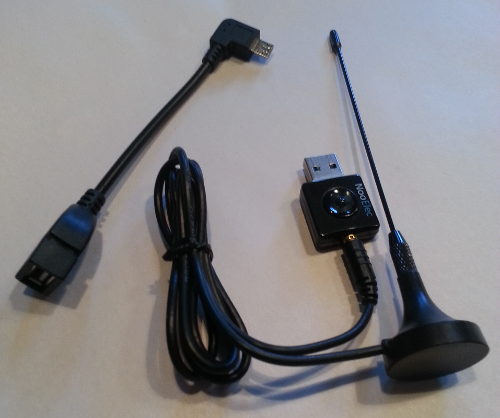

Example dongles:

NooElec NESDR Nano (R820T) (recommended!)

http://www.nooelec.com/store/computer-peripherals/nesdr-nano-rtl2832-r820t.html

NooElec NESDR XTR (E4000)

http://www.nooelec.com/store/computer-peripherals/usb-ota-receivers/dvb-t-receivers/nesdr-xtr-rtl2832u-e4000.html

NooElec NESDR Mini 2 (R820T2)

http://www.nooelec.com/store/computer-peripherals/usb-ota-receivers/dvb-t-receivers/nesdr-mini2-rtl2832u-r820t2.html

Example OTG cables:

OTG plus charging, requires power source

Micro USB Host OTG Y-Cable with Micro USB Power Charging for Samsung Phones

http://shop.valarm.net/products/micro-usb-host-otg-y-cable-with-micro-usb-power-for-samsung

OTG only

Micro USB to USB2.0 A Female OTG Data Host Cable for Nexus 7, Galaxy S3/S4

http://hiz.ch/fwd/ebay_OTG.html

AUTHOR

HIZ LLC, Michael Hammer

DISCLAIMER

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

MAP IMPLEMENTATION

You agree to the following by using the map provided by this app:

• It is not guaranteed that this app will always use a `Google Map`. The map implementation may change at any time.

• This app will not collect any personal data.

• Google Terms of Service: http://developers.google.com/terms/
