Good news, everyones! Of course, if you are an electronic engineer or hardware designer, And if you are using Altium Designer.

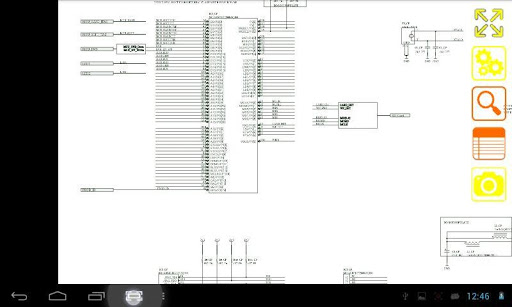

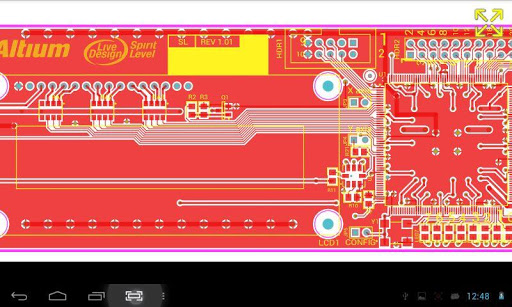

Now, you can see your Schemes and PCBs on the screen of your Android Tablet.

A little notice: you can see only SchDOC and PcbDOC files. Only in ASCII format.

ASCII is an interchange format for import and export files to/from another electronic CAD/EDA systems.

By default, Altium Designer saves your Schemes and PCBs as BINARY files.

How to save them in ASCII format?

1. Launch "Altium Designer for Windows" and open SchDoc or PcbDoc file.

2. Click "Save As...".

3. Choose file type: "Advanced Schematic ASCII (*.SchDoc)" or "PCB ASCII File (*.PcbDoc)".

That's all!

Demo version has a lot of restrictions and limits:

1. File size limit.

2. You can see only Top layers.

3. SchDoc is painting in black&white style.

4. Zoom restriction.

See our site or video on YouTube for additional info.

Minimum System Requirements:

Android OS: 4.0

Display: 4.0" (recommended for Android Tablets & Phablets)

Free RAM memory: 30 Mb (for Demo), up to 120 Mb (for Light/Pro)
