Before you download this app, please check the connection between your arduino-Bluetooth and android-Bluetooth first. Search "Bluetooth-SPP" in playstore, it is helpful.

If you are familiar with electronics, please utilize this app for fun!

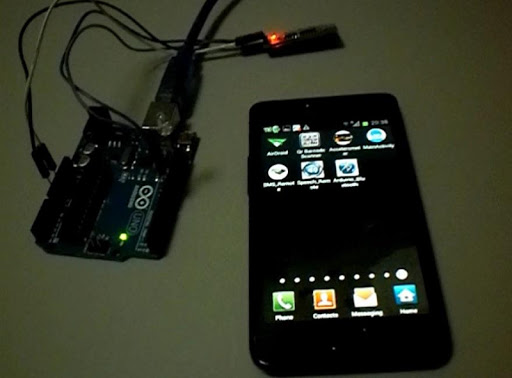

Testing devices: Samsung Galaxy S2, arduino-uno, HC-06, LED.

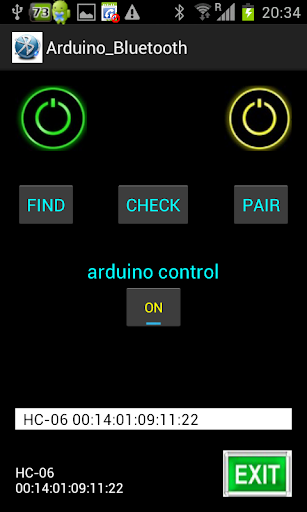

How to use it?

1) Turn on Bluetooth (Green circle)

2) Press "FIND" -> "CHECK" -> "PAIR"

3) Search for the corrected device

4) After identification, click "PAIR" again

5) To implement Bluetooth remote, press "On" (send char 'a') or "Off" (send char 'A') button.

6) Close Bluetooth (Yellow circle)

7) Press "Exit"

Hardware connections:

arduino: 5V <-> HC06: Vcc

arduino: GND <-> HC06: GND

arduino: 10(RX) <-> HC06: TX

arduino: 11(TX) <-> HC06: RX

Android 4.0.3 or above

The main arduino program for your DIY device (Reference only)

********************************************************************************************************************

#include"SoftwareSerial.h"

SoftwareSerial Genotronex(10, 11); // RX, TX

int ledpin=13;

char BluetoothData;

void setup()

{

Genotronex.begin(9600);

pinMode(ledpin,OUTPUT);

}

void loop()

{

if (Genotronex.available())

{

BluetoothData=Genotronex.read();

if(BluetoothData=='a')

{

digitalWrite(ledpin,1);

}

if (BluetoothData=='A')

{

digitalWrite(ledpin,0);

}

}

delay(100);

}

********************************************************************************************************************
