Control your robot via bluetooth

* Support with BlueStick - Serial Port Profile (SPP) Bluetooth Module.

Check Product at

BlueStick - http://goo.gl/gKdSG

Robo-CIRCLE 3S - http://goo.gl/Sj6aJ

Robo-Creator - http://goo.gl/b7jfs

POP-BOT XT Standard - http://goo.gl/aLMu7

For Robo-CIRCLE 3S download this code for i-Box III LogoBlocks to use with this application

http://goo.gl/s0GeB

For POP-BOT XT download this code for Arduino to use with this application

http://goo.gl/6KcNX

Download this application source code from

http://goo.gl/1mUxc

Bluetooth Control will help your to control your robot via bluetooth connection.So you can use android device to control robot.In use of this application, user must be connected android device to robot via bluetooth then controlling your robot by press direction button and command button

How to use

• Turn on your robot and this application

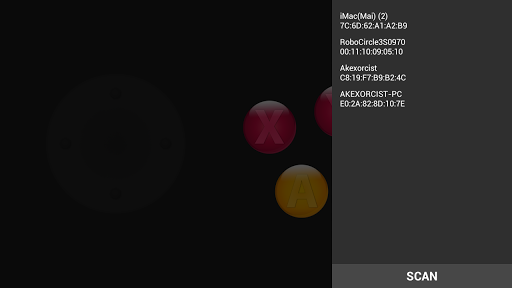

• Tab right side bar of application and scan bluetooth on your robot and select it

• Waiting for connection

• You can control your robot now

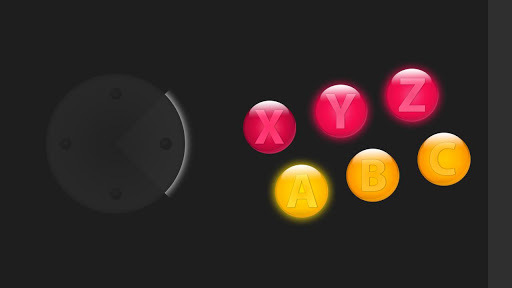

This application use bluetooth connection in Serial Port Profile (SPP).Send hex code to robot as follows :

0x30 = Stop [Release any button]

0x38 = Button Up

0x32 = Button Down

0x34 = Button Left

0x36 = Button Right

0x41 = Button A

0x42 = Button B

0x43 = Button C

0x44 = Button X

0x45 = Button Y

0x46 = Button Z

Your robot will have bluetooth connection, and programmed with bluetooth connection code.
