This app is a complete set of commercial electrical wiring diagrams for a commercial complex.

Commercial wiring diagrams, also known as Electrical Construction Drawings, including plans, layouts, schedules and worksheets are used by Electrical Contractors in all Electrical Construction Projects.

This app provides well-presented sample electrical wiring diagrams and step-by-step explanations and calculations for creating the diagrams.

Real-world examples of electrical plans, layouts, schedules and worksheets found in typical construction drawings of commercial complexes are packaged in this app including:

- Key Floor Plan

- Architectural Floor Plan - Dimensioned

- Electrical Floor Plan

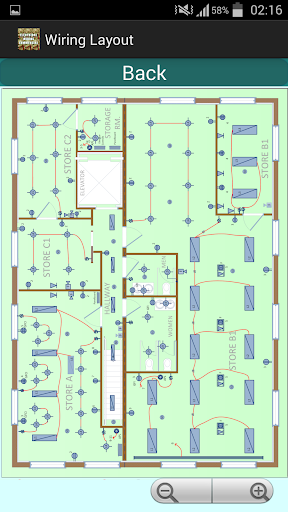

- Wiring Layout

- Electric Panel Schedule

- Electric Appliance Load Schedule

- Electrical Symbols

- Appliance Load Calculation Worksheet

- Feeder Load Calculation Worksheet

- Service Entrance Load Calculation Worksheet

- Site Development Plan

- Building Site Plan

Electrical plans, layouts, schedules and worksheets are presented as high resolution images.

This app provides you with a practical approach to learning design process for commercial wiring systems.

With this app, you have the opportunity to practice how to interpret and how to apply critical electrical code requirements.

All plans and schedules presented with this app are based on NEC requirements.

Real-world examples are used to reinforce key calculations and concepts for anyone working in commercial electricity industry.

Practice Makes Perfect!

Electrical plans, layouts, schedules and worksheets presented with this app will provide you with the knowledge base needed for understanding of electrical construction drawings for commercial wiring systems in common use today.

Step-by-step instructions for performing each calculation found in typical worksheets are provided for the example commercial complex in this app.

All the plans, layouts and schedules provided here are zoomable for easy viewing.

This app is recommended for anyone working in designing, reviewing, evaluating or installing commercial electrical systems including:

- Designers
