The perfect application to show you all important dimensions and weights for flanges in acc. with EN 1092-1 and DIN.
The handling is self-explanatory and easy: First you select the pressure type (PN), than the dimension type (DN). Finally you choose the needed flange type (e. g. type 11) and press “Result”. That´s all!

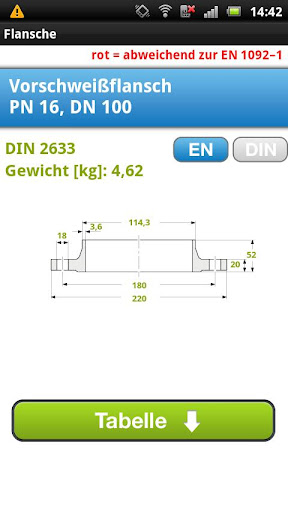

All values will be shown in a graphic design. If you choose “Table” you see all values in form of a table. Press “Done” and you go back to the overview.
A further service is the comparison of the dimensions EN 1092-1 (blue) to DIN (green): Please choose your needed standard (DIN or EN) and the non-conformed values will be changed.
The function “Pipe size” shows you all NPS acc. to EN and ISO.
All non-conformed values will be shown in red.
