This is a fieldtest/netmonitor application for UMTS/GSM/LTE/CDMA/EVDO network.

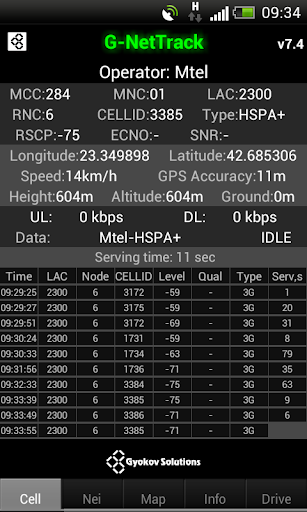

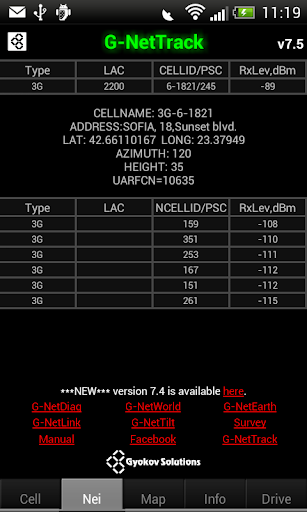

The application monitors the serving CELLID, LEVEL, QUAL, MCC, MNC, LAC, technology, cell serving time and neighbor cells CELLID/PSC and LEVEL.

LEVEL and QUAL depend on technology:

- 2G - RXLEVEL and RXQUAL

- 3G - RSCP and ECNO

- 4G - RSRP and RSRQ

Only for 4G also SNR and CQI are monitored

Measurement availability depends on the phone.

Check phone measurement capabilities - http://www.gyokovsolutions.com/survey/surveyresults.php

*** G-NETTRACK PRO - Pro version with additional features ***

- INDOOR measurements

- AUTO INDOOR mode for tunnels and places with bad GPS reception

- added chart with serving and neighbor cells levels

- Floorplans loading

- New 3D map - different types of maps, 3D buildings, maps autocacheing

- LTE serving and neighbor cells measurements

- Predefined routes loading

- Unlimited number of cell layers and custom cell colors

- SMS test sequence for monitoring SMS successful sending and delivering

- Screen orientation change (portrait/landscape)

Get the pro version G-NetTrack Pro on these stores:

Google Play: http://play.google.com/store/apps/details?id=com.gyokovsolutions.gnettrackproplus

Amazon: http://www.amazon.com/Gyokov-Solutions-G-NetTrack-Pro/dp/B00IX1ADJG

G-NetTrack Pro video demo - https://www.youtube.com/watch?v=W8W908OHmb4

Try G-NETTRACK PRO on Google Play:

http://play.google.com/store/apps/details?id=com.gyokovsolutions.gnettrackpro

G-NetLog is available - same as G-NetTrack Pro, but without map support - suitable for phones without Google Play services installed. Get G-NetLog here:

http://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetlogtrial

If LEVEL is -200dBm or less that means your device does not report correctly and you have to search for a software update. Anyway you can still use the app for logging the call and data transfer statistics.

G-NetTrack manual - http://www.gyokovsolutions.com/manuals/gnettrack_manual.php

G-NetTrack YouTube channel - http://www.youtube.com/channel/UCSw0Vrp9ZUoYo6a9hM6gTyA

G-NetWorld - webservice for browsing the measurements sent from G-NetTrack users - http://www.gyokovsolutions.com/G-NetWorld/G-NetWorld.php

G-NetLook - tool for visualization of text log files - https://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetlook

G-NetDiag - online tool for postprocessing of text log files - http://www.gyokovsolutions.com/G-NetDiag/G-NetDiag.html

On some phones Menu is accessible via pressing and holding the current apps button.

How to make logs:

- start the app

- select what measurements you want to log (Menu-Settings)

- start log (Menu - Start Log)

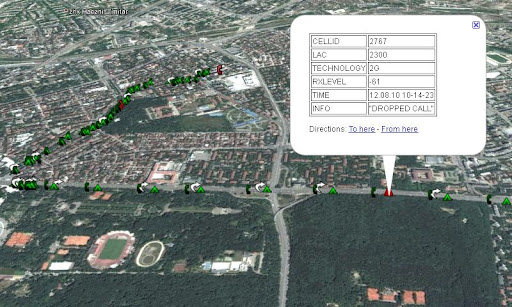

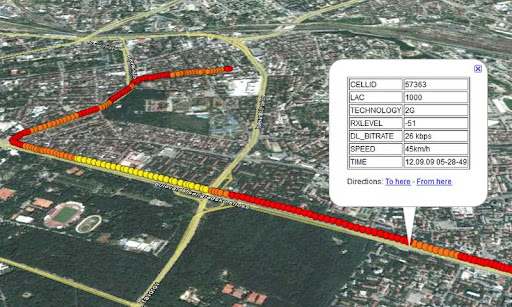

- the app starts to create kml and text tab export for the selected measurements

- it also creates event kml and text file

- when you are finished with measurements press End Log button

- you can find kml exports and tab exports in folder G-NetTrack_Logs on sdcard

Data Test:

1. Input the ping, upload and download URL in Settings.

2. Select: Menu - More - Data Test

There are two automatic sequences VOICE and DATA that can be performed:

1. VOICE - it includes

- Voice call

- Pause

During the VOICE sequence the following stats are calculated:

- successful calls

- blocked calls

- dropped calls

2. DATA - it includes:

- 10 seconds ping

- 10 seconds upload

- 10 seconds download

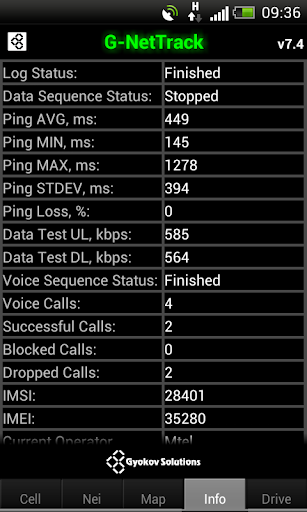

During the DATA sequence the following stats are calculated:

average ping

- min ping

- max ping

- ping standard deviation

- ping loss

- upload bitrate

- download bitrate

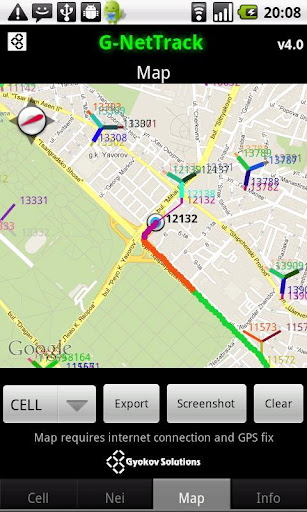

You can create cellfile and you can view sites on map - see the screenshots. Put the file in the folder G-NetTrack_Logs/cellfile.

For more information go to www.gyokovsolutions.com
