This app from Keysight Technologies (formerly Agilent Technologies) lets you view and control a broad range of Keysight oscilloscopes, digital multimeters, spectrum analyzers, function generators and power supplies. Perfect for monitoring long running tests or when instrument access is inconvenient, BenchVue Mobile gets you connected to your bench. Measurement visualization, screen and data capture, and instrument control are possible for Keysight instruments from your phone or tablet.

Key Features

Data logging controls

Set instrument parameters

Start and stop measurements

Mobile access to your LAN, GPIB, USB or RS232 connected instruments

Collaborate by having multiple mobile devices connect simultaneously

ATTENTION

BenchVue Mobile is a companion app for Keysight's BenchVue software and requires installation of Keysight BenchVue software on your Windows PC to communicate with your instruments. If you haven't already installed BenchVue, it is available at no cost here:

http://keysight.com/find/BenchVue

Supported Instruments (The instruments listed below are sold by Keysight and in most cases were formerly sold by Agilent)

Digital Multimeters

34401A, 34405A, 34410A, 34411A, 34450A, 34460A, 34461A

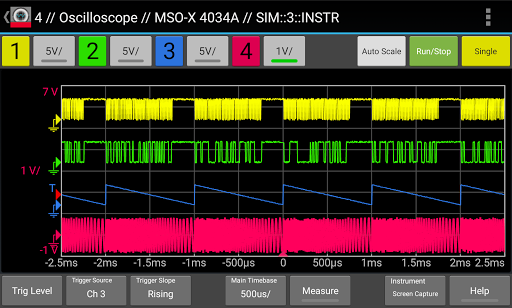

Oscilloscopes

InfiniiVision 2000 X-Series, 3000 X-Series,4000 X-Series, 6000 Series, 6000 X-Series, and 7000A/B X-Series.

Infiniium 9000A Series and S Series.

Spectrum Analyzers

N9030A PXA, N9020A MXA, N9010A EXA, N9000A CXA,N9320B, N9322C,E4440A, E4443A, E4444A, E4445A, E4446A, E4447A, E4448A,E4402B, E4404B, E4405B, E4407B, E4403B, E4411B, E4408B

Function Generators

33210A, 33220A, 33250A, 33521A, 33522A, 33509B, 33510B, 33511B, 33512B, 33519B, 33520B, 33521B, 33522B, 3611A, 33612A, 33621A, 33622A

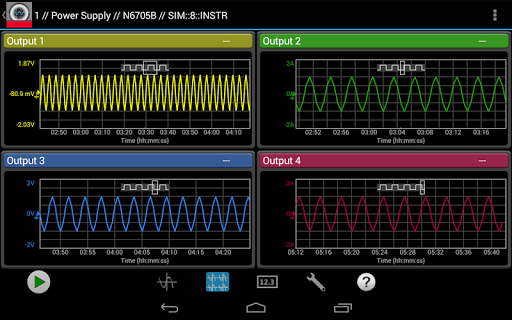

DC Power Supplies

E3631A, E3632A, E3633A, E3634A, E3640A, E3641A, E3642A, E3643A, E3644A, E3645A, E3646A, E3647A, E3648A, E3649A, N6700A/B, N6701A, N6702A, N6705B, N6950A, N6951A, N6952A, N6953A, N6954A, N6970A, N6971A, N6972A, N6973A, N6974A, N6976A, N6977A, N7950A, N7951A, N7952A, N7953A, N7954A, N7970A, N7971A, N7972A, N7973A, N7974A, N7976A, N7977A

How to use this App

1. Install Keysight BenchVue on your Windows PC.

2. Start BenchVue on your PC and connect to your instruments.

3. Enable mobile access in BenchVue.

a) First, enable mobile access in the main settings and set a mobile password.

b) Then, enable mobile access for each instrument that you want to access.

4. Start this app and tap “Connect to BenchVue on PC”

5. Connect to BenchVue by doing one of the following:

a) Enter the IP Address or hostname of your PC and your password then tap "Connect”, or

b) Display the BenchVue QR code on your PC, then tap the Scan button in BenchVue Mobile to scan it, or

c) Use BenchVue to send an email to your mobile device with a link to connect.

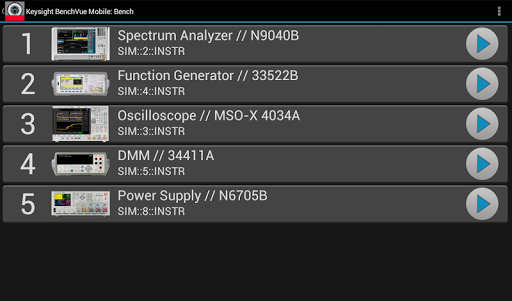

6. Tap an instrument to view and control it.

Note if your PC is behind a firewall, you may need to use a VPN to access it when your phone/tablet is outside the firewall.

Requires Android 2.3.5 and up
