This application will help you to control switch in your home as known "Wireless power strip controller"

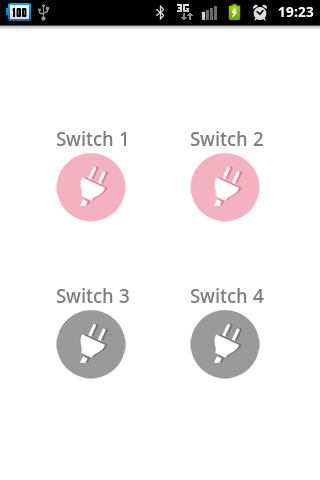

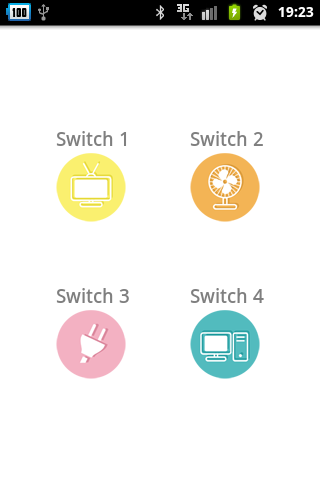

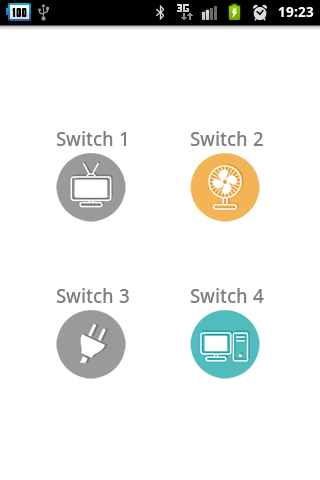

You can turn on - off by your android to DIY power strip

Just connect your android to IOIO or IOIO-Q board and then select any plug

DIY power strip have a circuit inside. The circuit consists of the following

IOIO or IOIO-Q board, Solid-state Relay, IC 74HCT573

Explain : This application use with IOIO or IOIO-Q board you can buy in www.inex.co.th

http://goo.gl/iSFHP

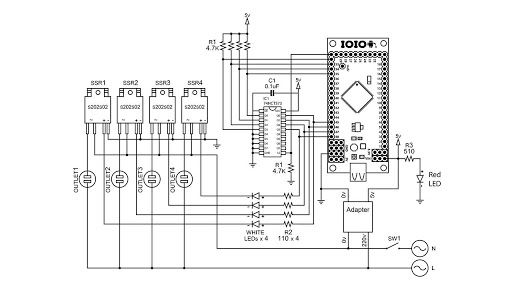

Circuit for this application

Connect IOIO or IOIO-Q board with circuit by

Port 48 : D0 of 74HCT573 (Plug 1)

Port 47 : D1 of 74HCT573 (Plug 2)

Port 46 : D2 of 74HCT573 (Plug 3)

Port 45 : D3 of 74HCT573 (Plug 4)

See more detail from www.tpemagazine.com on issue 29

Download source code from

http://goo.gl/etqUeh

or

https://github.com/akexorcist/IOIO-Android-LoadSwitch4/
