MaxANSI Handbook Pro2.0. is the Piping Component Dimensions Reference Guide, for ANSI.

As of now, DB Library services

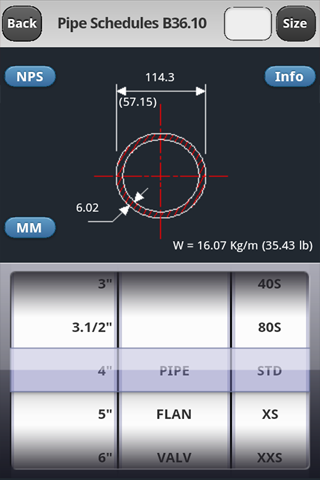

• PIPE B36.10,

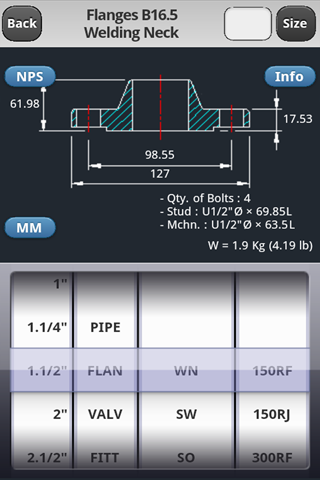

• FLANGE B16.5,

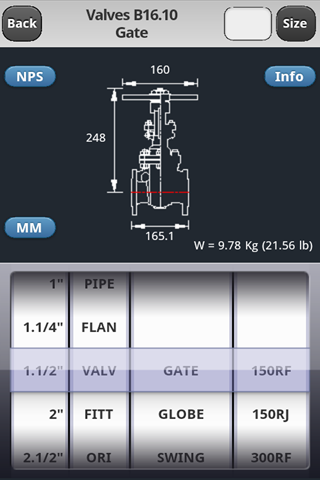

• VALVE B16.10,

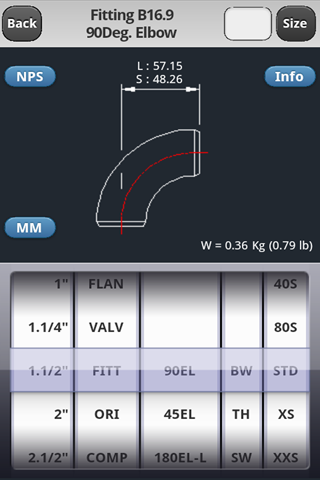

• FITTING B16.9/B16.11,

• ORIFICE FLANGE B16.36

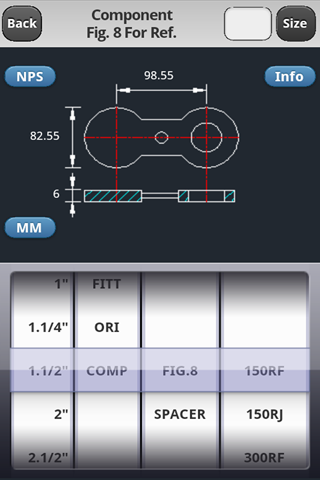

• COMPONENT(Fig.8 and Spacer for Ref.).

If you have installed free version before, remove it first and then install paid version.

Any bugs or improvements,that you reply to, would be reflected positively.

We're hopeful of your choice. Thanks in advance.!!!

* Note

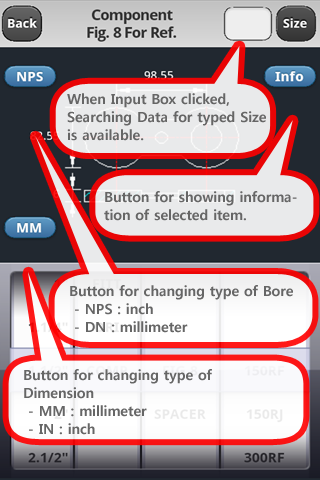

- Bore size : NPS / DN

- Dim. size - Imperial Unit(inch) / Metric Unit(mm)

- Dim. values are rounded at three decimal places.(ex. 0.216 to 0.22)

- Most of data have been referenced by 1994 ANSI,ASME Catalog and some data by 2005 edition.

(piping, handbook, pipe, flange)
