This application is a simple calculation program.

Currently in beta, provides only basic functionality.

Updated through the basic information and a variety of substrates, analysis, design, and will add variety.

Analysis of the current analysis to optimize function will be available soon.

[Currently available function]

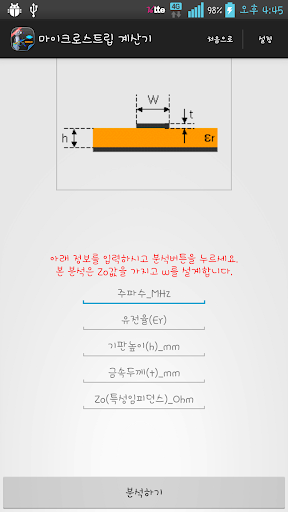

- Microstrip Design

  (Dielectric constant, frequency, W, H, T by entering a value Eeff, Zo, lamda, lamda_g, lamda_g / 4, etc. to obtain the values ​​of)

- Analysis capabilities (coming soon)

  (W, instead of the value of Zo Zo = 50 If you have a matching Obtain a W value)

Information will be updated

- Analytics

- Basic information registration board (FR-4, Teflon, etc.)

- Other design through a different calculation

- Zo1 and design matching circuits between Zo2

Inquiry

Homepage: http://www.i-rooting.com

Email: yongyongdev@gmail.com

Multi-language support is expected to be supported from the full version.

-by yongdev

Thank you.
