Android Modbus Master/Client and Slave/Server for phones and tablets. The Modbus Monitor utility is simple but have many advanced features unmatched even by PC based standards. This is the only Modbus App in the Android store with three Apps in one!!! (Modbus Master, Modbus Server, and Sensors Server in Modbus TCP).

This utility works using Bluetooth, Ethernet, Wi-Fi, or USB Serial OTG ports.

:- - Bluetooth Serial Ports: Modbus RTU/ASCII. Supports both Secure or Insecure Connections for most compatibility.

:- - Ethernet / Wi-FI: Modbus TCP, Modbus RTU over TCP, Modbus UDP, Modbus RTU over UDP, Modbus TCP Slave/Server

:- - USB Serial Port: Modbus RTU/ASCII Serial Protocols. Check you device compatibility below.

@^ Top Features

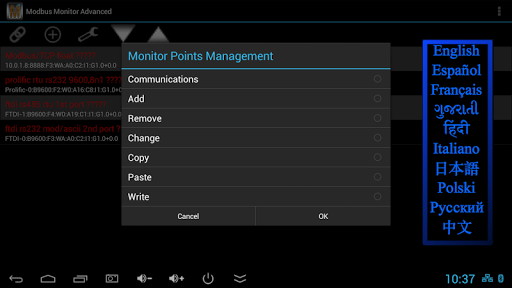

-Languages: German (de), Spanish (es), French (fr), Gujarati (gu), Hindi (hi), Italian (it), Japanese (ja), Polish (pl), Russian (ru), and Chinese (zh-rTW)

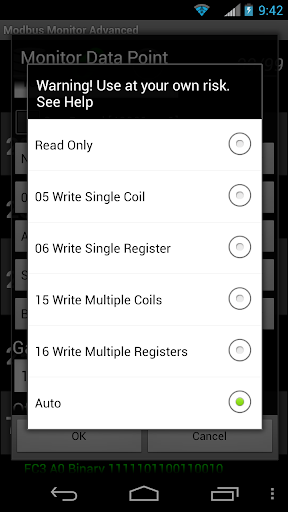

-Modbus Functions: FC1, FC2, FC3, FC4, FC5, FC6, FC15, FC16, Write Auto Pick

-Modbus Address Range: 0 - 65535

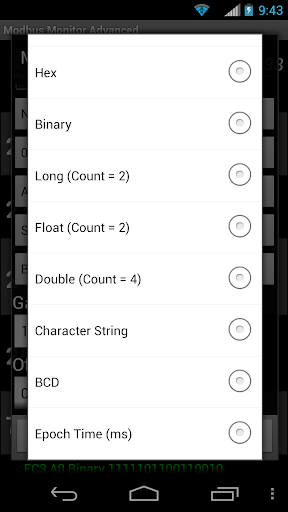

-Data Conversion: Unsigned, Signed, Hex, Binary, Long, Double, Float, String, BCD formats, Unix Epoch Time, PLC Scaling (Bipolar/Unipolar Analog ADC value conversion)

-Import/Export: CSV format from Internal/External Memory or Email (Gmail, Google Drive, Android Email, Yahoo!, MailDroid, K-9, Aqua Mail, etc)

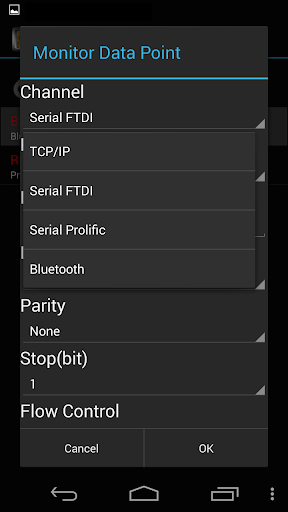

-Pro Settings: Interval, Inter-Packet Delay, Link-Timeout, Actual RX/TX Counts, Baud Rate, Stop Bits, Data Bits, Handshaking

@ Modbus Master Features

- Protocols: Modbus TCP, Modbus RTU over TCP, Modbus UDP, Modbus RTU over UDP, Modbus RTU (Bluetooth, USB Serial Port), Modbus Serial ASCII (Bluetooth, USB Serial Port)

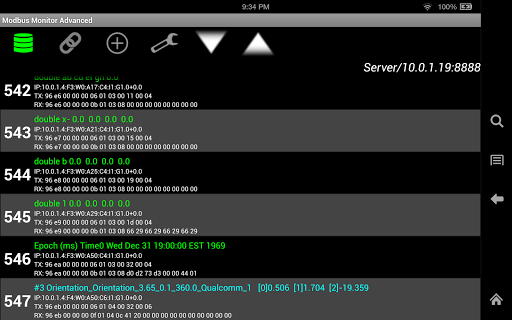

> Packet Sniffer: Transmit and Receive Packets from your device, or turn it Off

- Talk to Multiple IP Addresses and Protocols (Mix and Match TCP/UDP/etc)

- Statistics on Analog Values ( min, max, average)

> Communication Capture Log (Export with Email)

@ Modbus Slave (Server) Features

- Protocols: Modbus TCP only

- Talks to multiple Modbus Masters

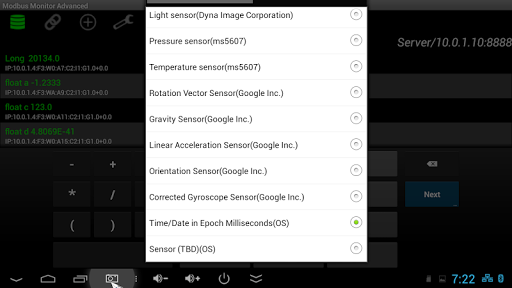

- Serve Raw Sensors Data (Read All of your Phone's Sensors Remotely: Accelerometer, Gyroscope, Light, Compass, Temperature, etc.)

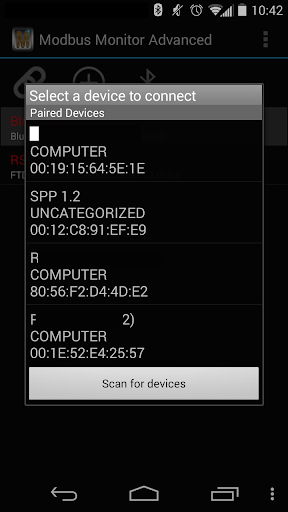

{ ! } Bluetooth Requirement

1. Your device must have Bluetooth Radio that supports SPP profile (RFCOMM Secure or Insecure)

2. See "ModbusMonitor.com" for help in troubleshooting communication issues or email help@modbusmonitor.com with issue.

3.See below for hardware requirements

{ ! } USB-to-Serial Port Requirement, USB OTG Serial Ports>> RS232/422/RS485

Your device must meet all of the THREE requirements. Multiple USB serial ports (on USB Hub) are supported.

1. Your device must be Android version 3.2 or newer

2. Your device must support USB Host or OTG interface

3. Your USB-to-Serial Port dongle must contain one of following chipsets: > [1] _FTDI_ (FT230X, FT231X, FT234XD, FT232R, or FT232H) > [ Or 2] _Prolific_ (PL2303HXD, PL2303EA, or PL2303RA) [Or 3] _SiLab_ CP210x

4. RS485: Tested with "no echo" setting turned ON.

{ ! } Hardware
