The main features are:

- Sites database. You can create a single o multiple sites over the terrain. Also, you can import KML files generated in Google Earth or export KML files to be used in Google Earth.

- Calculation (up to 50kms)of single radio electric visibility maps. The percentage of the first Fresnel zone clear over a threshold is automatically calculated and represented in a map. You can see what points have radio electric visibility from a site. Very useful for the planning of multiple radio links in a geographical area. Also, you can export your radio electric visibility maps to KML to be used in Google Earth.

- Representation of multiple radio electric visibility maps (also in color range) simultaneously. Useful to identify common areas of visibility from various locations. For example, if two sites do not have direct vision between them is possible that they may be linked by a third site having vision with both.

- Auxiliary sites can be created when representing multiple radioelectric visibility maps.

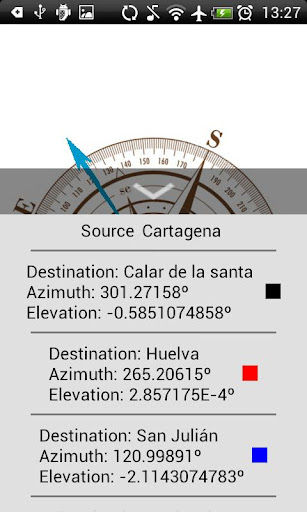

- Orientation of the multiple antennas in azimuth (relative to the North) and elevation (relative to the horizon) between a site and multiple geographical points. Useful for quickly orientating the antennas situated at the sites.

- Dropbox. You can store results (sites database, radio electric visibility maps,...) and share them (if you want) instantly with your RF Terrain Visibility user group.

The Digital Terrain Model (DTM) has a resolution of 100x100m, 200mx200m, 300mx300 and 400mx400m for calculations up to 10kms, 25kms, 40kms and 50kms, respectively. and is obtained automatically from The Shuttle Topography Mission (SRTM), U.S. Geological Survey.
