The S7 PLC HMI software is Android solutions for PLC Siemens – S7 1200, 300 and 400. You can control via WLAN whole the object as Drive, Valve or Measure.

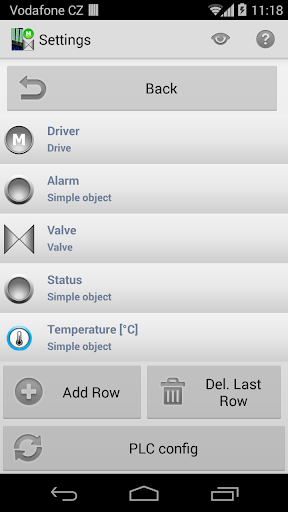

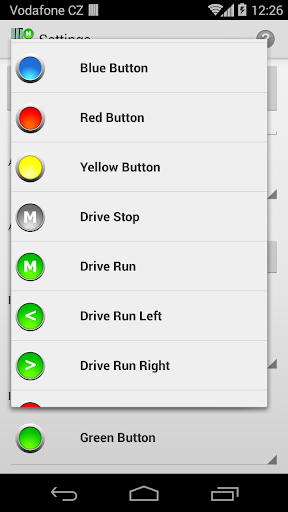

Objects:

Binary signal

Number

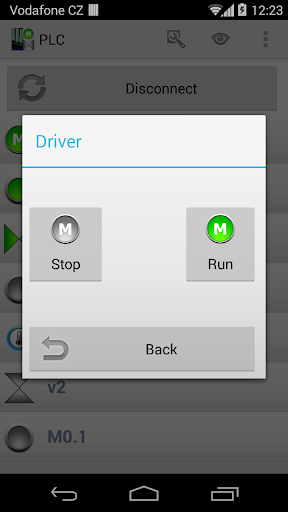

Drive – Running feedback, Error status and command Start and Stop

Drive with Local mode - Running feedback, Error status, Local mode status and commands Start and Stop. Local mode status has to be set to send a command.

Drive two directions – Running feedback Left, Running feedback Right, Error status and command Start Left, Right and Stop.

Drive two directions with Local mode - Running feedback, Error status, Local mode status and command Start and Stop. Local mode status has to be set to send a command.

Dumper – open feedback only, Error status and command open and close.

Dumpers with Local mode - open feedback only, Error status and command open and close. Local mode status has to be set to send a command.

Valve – Close and Open feedback, Error status and command open and close.

Valve with Local mode - Close and Open feedback, Error status and command open and close. Local mode status has to be set to send a command.

Commad set bit and reset second objet bit.

Lite version includes only two objects.

Full version is available on Google Play

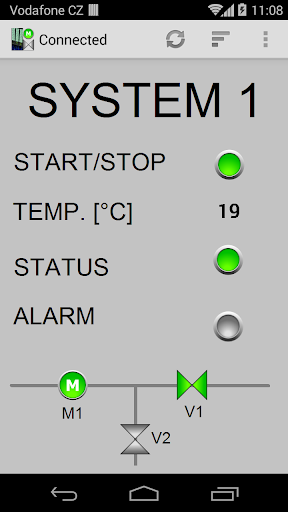

You can create HMI image with static objects in your favorite image editor and use this picture as background in visualization.

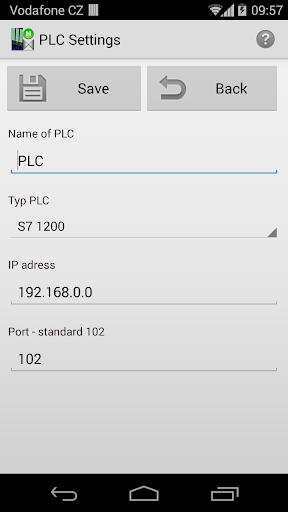

PLC:

Siemens S7 – 1200, 300, 400. To ensure the correct functionalities of S7 -1200, the standard DB – compatible with S7 – 300/400 has to be used. Not optimized DB!

If you find a bug or have a problem please contact us by email since we cannot help you if you post it in the reviews.

New application - S7 PLC Alarm - S7 PLC Alarm sends you push notification directly to your mobile phone, if the alarm is activated in the PLC. In case of non-delivery notifications about alarm, system will send out an email. You will know if alarm is on during a few seconds - http://s7-plc-alarm.prumsys.cz/ and https://play.google.com/store/apps/details?id=cz.prumsys.s7_plc_alarm

Review and rate the app if you like it.

Software is using libnodave library (http://libnodave.sourceforge.net/). Libnodave and this software are distributed in the hope that it will be useful, but without any warranty, without even the implied warranty or fitness for a particular purpose. Use entirely on your own risk. Please remember, that you can write to PLC memory and overwrite data.

Simatic S7, S7-1200, S7-300, S7-400 are registered trademarks of Siemens Aktiengesellschaft, Berlin und München.

For more information please feel free to contact us on email.
