The SIMATIC WinCC Sm@rtClient App, in combination with the SIMATIC WinCC Sm@rtServer, allows remote mobile operation and observation of SIMATIC HMI-systems over Industrial Ethernet/WLAN (wireless). The app is available for SIMATIC HMI Comfort Panels and SIMATIC WinCC Runtime Advanced.

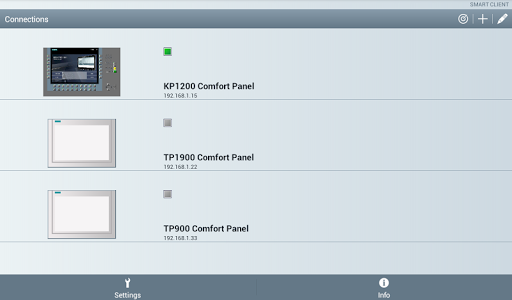

The scope of the Sm@rtClient concept allows an operation station to make its display available to the app. The station takes on the role of a Sm@rtServer, while the Smartphone/Tablet takes on the role of the Sm@rtClient. Sm@rtServer functionality can easily be activated with a single mouse click in the device’s configuration settings. The screen can be displayed on the Sm@rtClient by means of a Sm@rtClient display in "View only" mode, but a full-fledged, coordinated operation can be set up as well. "Coordinated operation" implies that at any one time only one user has the right of operation, i.e. either the operator station with Sm@rtServer function or the Sm@rtClient app. Additionally the app supports easy connection configuration by automatic HMI panel detection.

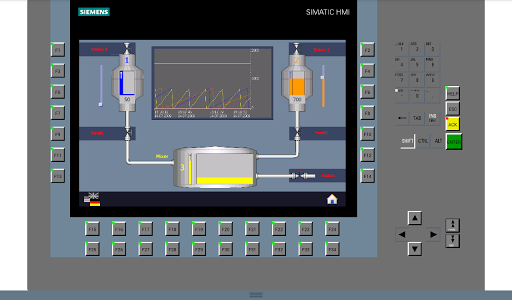

Not only does the Sm@rtClient app show a selected display, but it additionally shows the complete layout of the station device, including any functional hardware buttons on the device. As such, device operation may be performed as if the user was directly in front of the device, only that the buttons aren’t actually pressed, but rather are activated with a press on the display of a Smartphone or tablet.

SIMATIC WinCC Sm@rtServer: http://www.industry.siemens.com/topics/global/en/tia-portal/hmi-sw-tia-portal/wincc-tia-portal-options/simatic-wincc-smartserver/Pages/Default.aspx

Terms of Use:

By downloading this application you accept the SIEMENS End User License Agreement for mobile applications on http://www.siemens.com/industry-apps/wincc-smartclient/terms-of-use.

You may not use or otherwise export or re-export the application except as authorized by United States law and the laws of the jurisdiction in which the application was obtained. In particular, but without limitation, the application may not be exported or re-exported (a) into any U.S.-embargoed countries or (b) to anyone on the U.S. Treasury Department's Specially Designated Nationals List or the U.S. Department of Commerce Denied Persons List or Entity List. By using the application, you represent and warrant that you are not located in any such country or on any such list. You also agree that you will not use the application for any purposes prohibited by United States law, including, without limitation, the development, design, manufacture, or production of nuclear, missile, or chemical or biological weapons.
