Additional Torque* OBD PID information for the Mazda 3 2010-2013 (Standard & Skyactiv):

- Short Term Fuel Trim

- Long Term Fuel Trim

- Fan Speed Desired

- Fuel Pulse Width

- Knock Retard

- Mass Air Flow Volts (beta)

- Measured Weight of Passenger

- Variable Cam Timing Actual Advance

* Requires the paid Torque Pro (version 1.8.36 and higher) as the free Torque Lite does not have plugin support.

Installation and License Verification:

1. Check to see that the plugin is listed in the "Installed Applications" of your Android device.

2. Be sure to have an active internet connect for purchase authorization.

3. Launch Torque and wait 10 seconds or so for the purchase validation process.

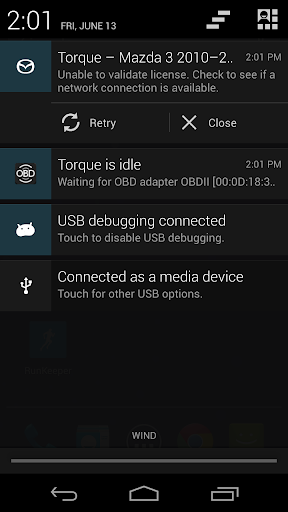

4. Check if you get any popup windows saying that you are not authorized to use the plugin. If you got the not authorized popup, see notifications for more details. Since Torque screens hide the notification bar you need go to your device's home screen in order to see them. Please see the screenshots for an example of "Unable to verify the license" notification.

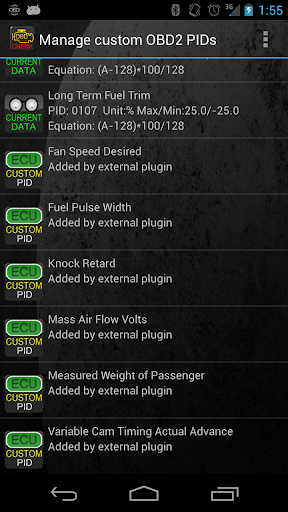

5. Check that the plugin is listed in Torque under "Settings" -> "Plugins" -> "Installed Plugins...". If the plugin is on the list that means the purchase validation was successful.

Initial Configuration Instructions:

1. Launch Torque and go to "Settings"

2. Scroll down to "Manage extra PIDs/Sensors".

3. From the menu, choose "Add predefined set".

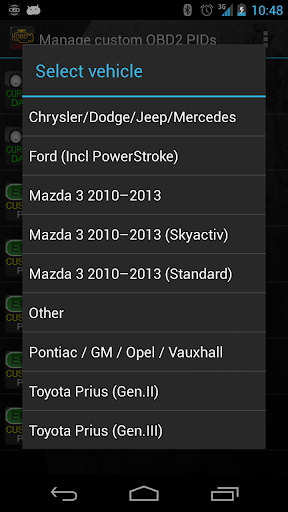

4. You should see three entries starting with "Mazda 3 2010-2013" in the list. Pick one of the entries. If you do not see them, then the purchase validation may still be in process or the plugin may not have been installed correctly.
